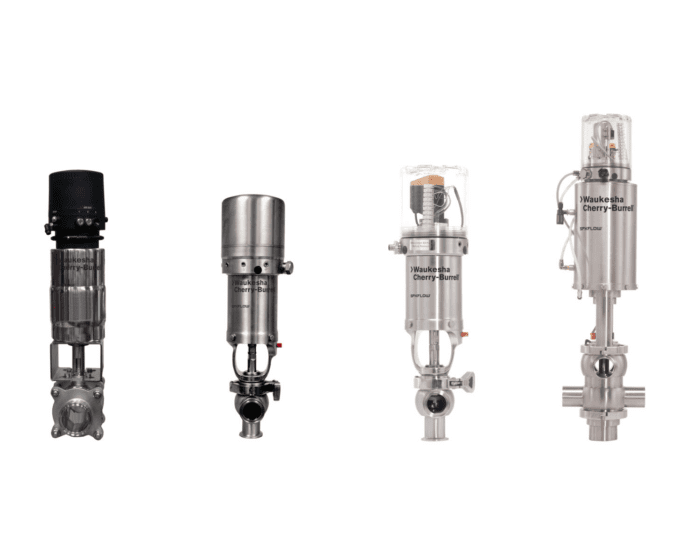

LPE offers a wide variety of control tops to best fit the type of valves you are utilizing.
Waukesha Cherry-Burrell Brand Control Tops:
- Visibility – transparent control top keeps all electrical components visible.
- User-Friendly – designed with the user in mind, making assembly and troubleshooting worry free and easy
- Common Parts – utilizes the industry’s most widely recognized electrical components, so access to off the shelf replacement parts is easy, ensuring quick delivery and less down time
- Standardization – same control top used on various WCB valve lines, offers common look and controls interface
- NEMA 4x (lP56) washdown rating
- Stainless Steel cover option for severe duty environments
CU4 & CU4plus Control Tops:
- Reliability and long service life – robust clamp connection, reinforced stainless steel air coupling threads to avoid air leakages, and watertight seals
- Reduced costs – few parts and simple design
- Ease of Operation simple sensor adjustments and contains manual override solenoids and adjustment screw to throttle air flow to actuator to ensure optimal opening and closing
- Clarity – clear and bright indication of valve position – 5 diodes in LED panel and convenient location
- Standardization – same control top used on various SPX FLOW valve lines, offers common look and controls interface
- NEMA 6 (l67) washdown rating
8681 Control Tops:
- Ease of Operation– Contact free position sensor easily taught via intuitive push buttons or Autotune feature to ensure quick & easy set-up
- Clarity– Ultra-bright 360° visual LED position indication with adjustable red, yellow, & green color assignments visible from all points of view and avoid confusion
- Service – Built-in microcontroller tracks cycles and alerts operator when preventive maintenance is required
- Standardization– same control top used on various SPX FLOW valve lines, offers common look and controls interface
- Up to IP69K washdown rating available (IP65/67 as standard) for high washdown environments
- Supplied by industry leading Burkert Fluid Controls
Waukesha Cherry-Burrell Control Top Options:
Connector Options | Interface Options | Position Indication | Solenoid Valves |
|
|
|
|
CU4 & CU4plus Control Top Options:
Connector Options | Interface Options | Position Indication | Solenoid Valves |
|
|
|
|
8681 Control Top Options:
Connector Options | Interface Options | Position Indication | Solenoid Valves |
|
|
|
|
